BloomRay is good design for the greenhouse, commercial rack and warehouse grow operations. The advanced heat solution which is keep the lights safe and high efficient for the lighting work. The connectable rack system makes your greenhouse's layout easily installing and maintain, architecture simply and beauty.
















The HD full spectrum building 6 bands LED which can Perfect Blend Spectrum available in either flower or vegetative integrations provides ideal photon emissions in every essential wavelength along the photosynthetic spectrum.

The BloomRay is revolutionary series of LED grow lights will produce the biggest and best yields, while consuming approximately half the electricity of its HID counterpart and producing virtually no heat. It takes the bilateral heat sink fin design, which is good for the air circulating flow and speed up the heat removal. Your BloomRay will cultivate record breaking yields, both in quantity and quality, while running quieter, cooler, and more efficiently than any other grow light.

The Sky Bracket is made by an all-aluminum profile. Simple and flexible design allows for arbitrary alignment between lights. The slidable hanging rail makes it easier for your BloomRay to adjust position. The unit can hang up to 10 BloomRay and build up to 6000W illumination system, allowing you to concentrate on the lighting needs. Equipped with a 4-meter long steel cable and enhanced double-buckle firmware to ensure height adjustment and safety.

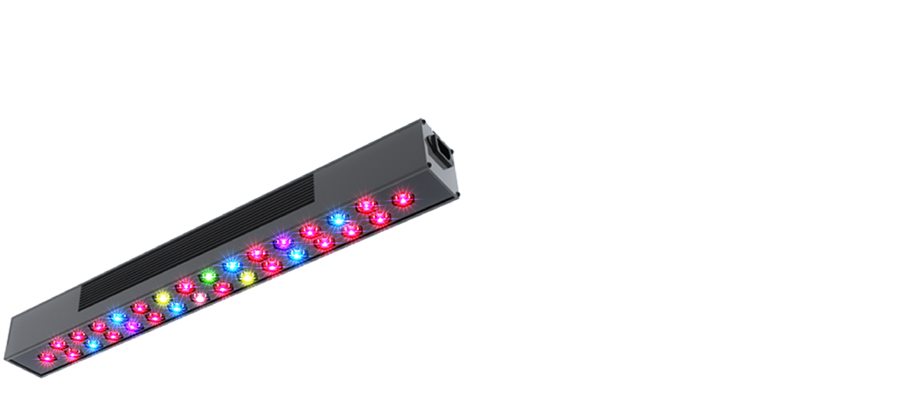

BloomRay 24"

bloomray - led grow light

Item No.: BR24-300W
Power: 300W
Actual Power: 60W
LEDs: 30PCS High Intensity 10W Bridgelux / Epistar LEDs
HID Equivalent: 120W
Secondary Lens: 90°
Weight: 2.0kg (2.2pound)
Size: 600X65X65mm (23.6"x2.6"x2.6")
Shipping Weight: 2.5kg (4.4pound)
Packing: 750x100x100mm (12"x7.0"x2.8")
Universal Input Range: AC100-240V, 2.0A
BloomRay 24" 1 PC : Coverage: 3.0' x 3.0'


bloomray - led grow light


LEDs Array


bloomray - led grow light

BloomRay 24"

18pcs - Deep Red (660~665nm)
6pcs - Deep Blue (440~455nm)
2pcs - Warm White (3000~3500K)
2pcs - Ultra Violet (UV) (380~385nm)
1pc - Infra-Red (IR) (740~745nm)
1pc - Super Green (520~525nm)

bloomray - led grow light

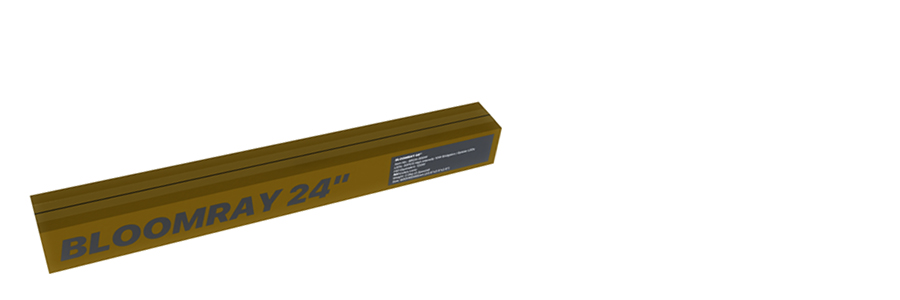

What's in the Box

bloomray - led grow light

1 * BloomRay 24"
1 * Hanging Kits
1 * Sky Bracket (optional)
1 * Connect Power Cord (Max 10 Lights)
1 * Standard Power Cord
1 * Printed Instructions

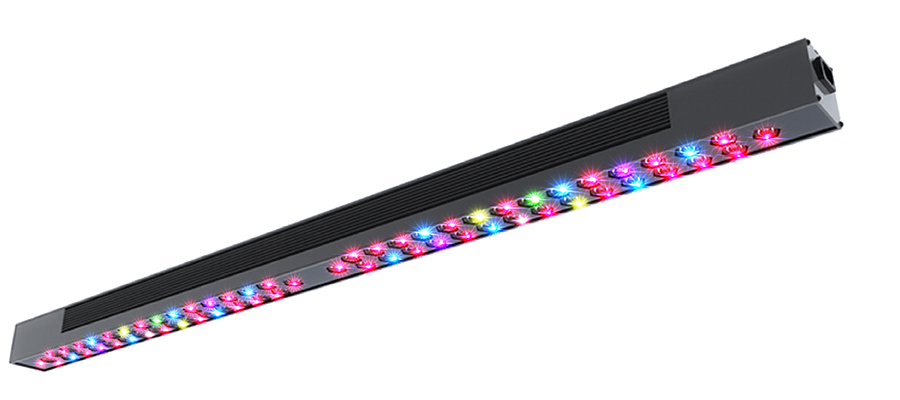

BloomRay 48"

bloomray - led grow light

Item No.: BR48-600W
Power: 600W
Actual Power: 120W
LEDs: 60PCS High Intensity 10W Bridgelux / Epistar LEDs
HID Equivalent: 240W
Secondary Lens: 90°
Weight: 3.0kg (2.2pound)
Size: 1200X65X65mm (47.2"x2.6"x2.6")
Shipping Weight: 2.5kg (4.4pound)
Packing: 1350x100x100mm (12"x7.0"x2.8")
Universal Input Range: AC100-240V, 2.0A
BloomRay 48" 1 PC : Coverage: 3.0' x 5.0'


bloomray - led grow light

.

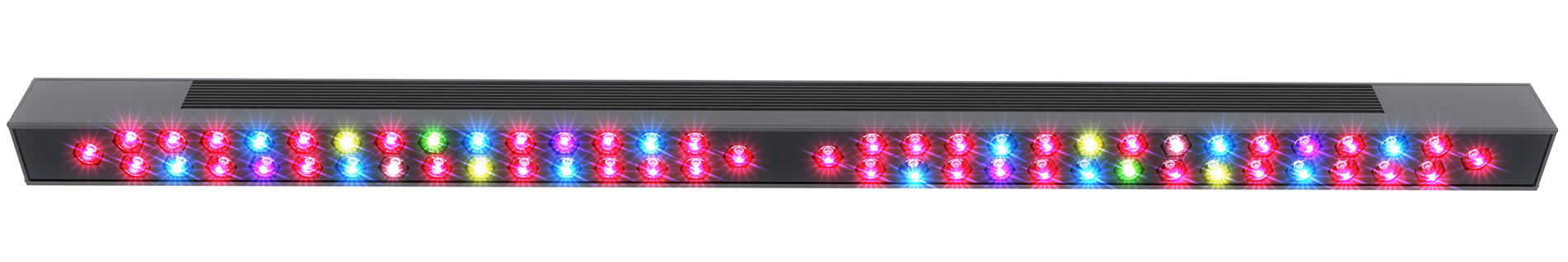

bloomray - led grow light


BloomRay 48"

36pcs - Deep Red (660~665nm)
12pcs - Deep Blue (440~455nm)
4pcs - Warm White (3000~3500K)
4pcs - Ultra Violet (UV) (380~385nm)
2pcs - Infra-Red (IR) (740~745nm)
2pcs - Super Green (520~525nm)

bloomray - led grow light


.

bloomray - led grow light

1 * BloomRay 48"
1 * Hanging Kits
1 * Sky Bracket (optional)
1 * Connect Power Cord (Max 10 Lights)
1 * Standard Power Cord
1 * Printed Instructions
